1. The problem I’m having:
Hello
I have managed to have a caddy working as a reverse proxy through a cloudflare tunnel.
I have two reverse proxies.
client → https (bha.xxx.com via cloudflare tunnel) → caddy → http → application 1.
client → https ->(bvw.xxx.com via cloudflare tunnel) → caddy → https → application 2.
Everything works fine so I decided to add one more layer of security, Coraza and when it works I will add Crowdsec.

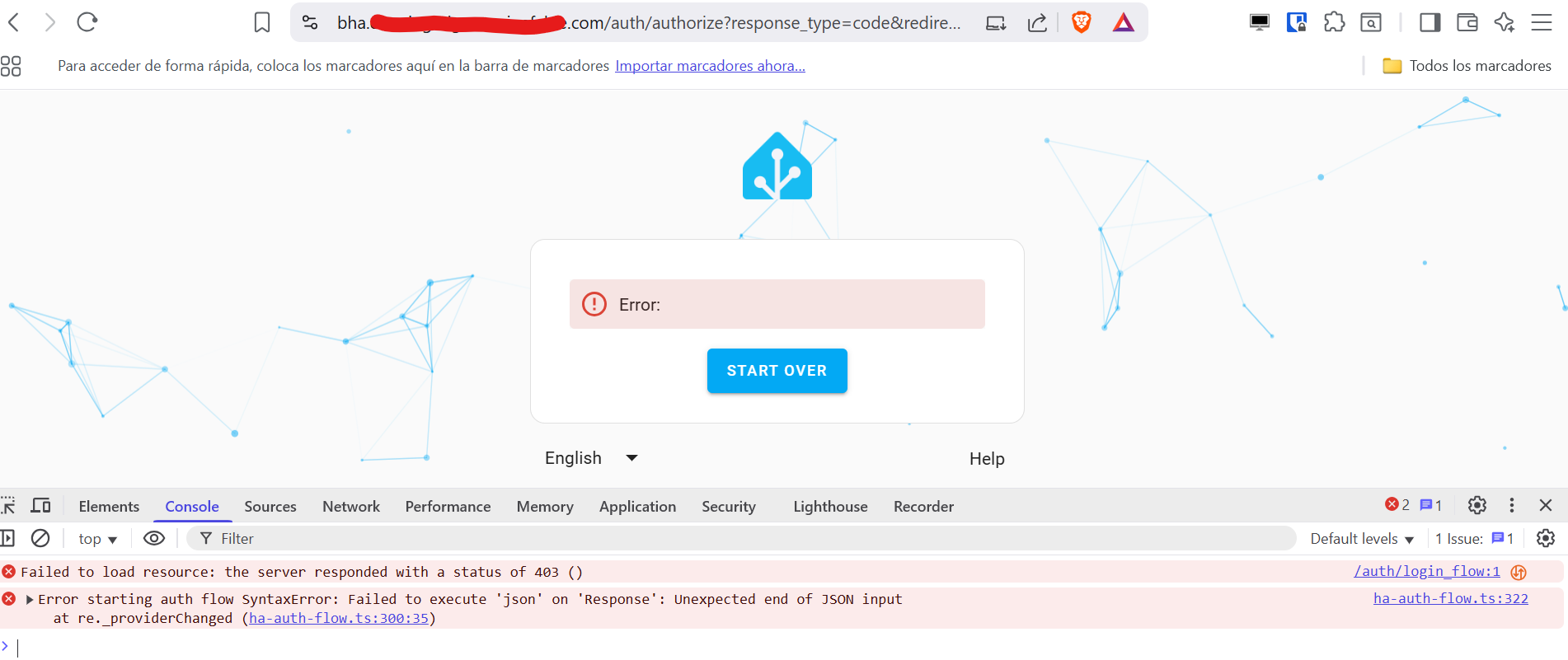

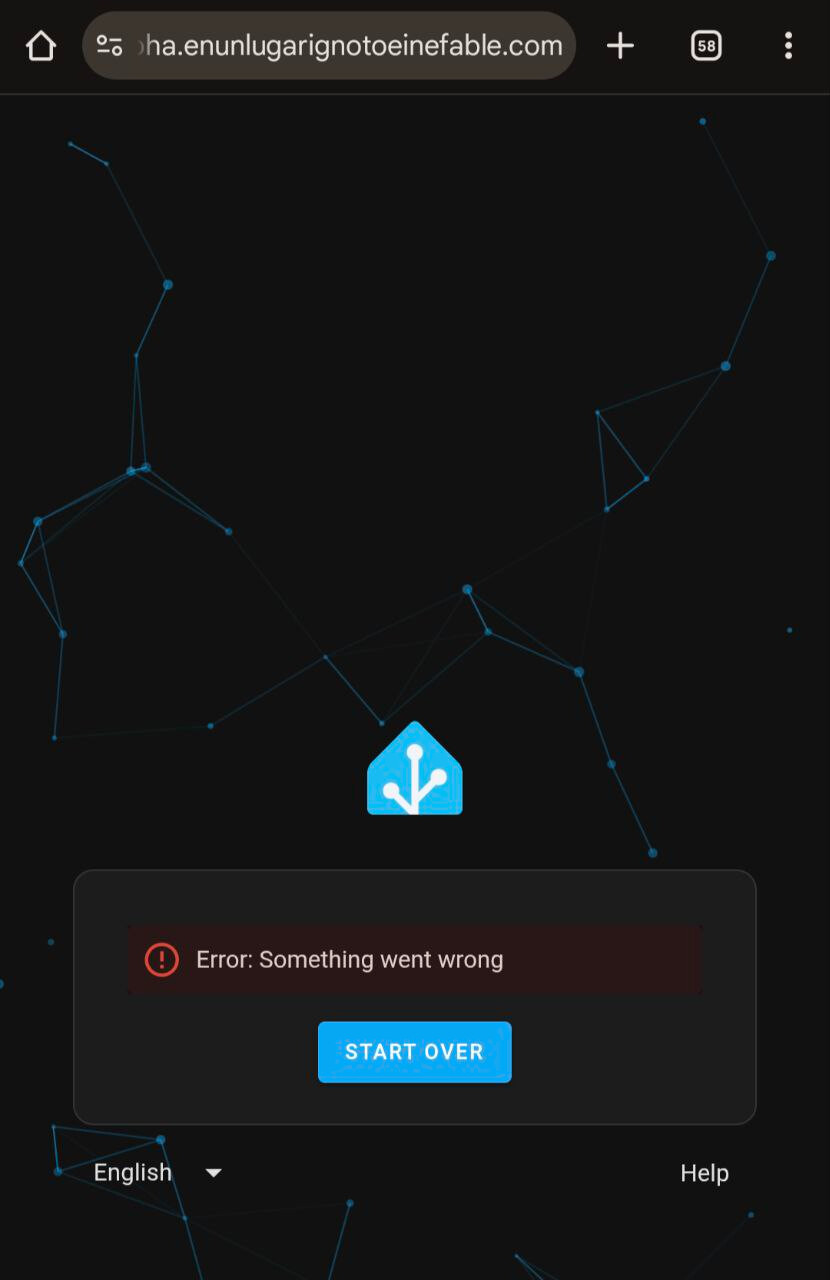

Since I’ve enabled Coraza I can access to application 2 but coraza cuts off access to application 1
I have the same configuration in both cloudflare tunnels.
2. Error messages and/or full log output:
{"level":"error","ts":1754406872.442574,"logger":"http.handlers.waf","msg":"[client \"172.18.0.1\"] Coraza: Access denied (phase 2). Inbound Anomaly Score Exceeded (Total Score: 5) [file \"@owasp_crs/REQUEST-949-BLOCKING-EVALUATION.conf\"] [line \"7441\"] [id \"949110\"] [rev \"\"] [msg \"Inbound Anomaly Score Exceeded (Total Score: 5)\"] [data \"\"] [severity \"emergency\"] [ver \"OWASP_CRS/4.15.0\"] [maturity \"0\"] [accuracy \"0\"] [tag \"anomaly-evaluation\"] [tag \"OWASP_CRS\"] [hostname \"\"] [uri \"/auth/login_flow\"] [unique_id \"XJqIoiYIsKNSstNv\"] |
3. Caddy version:
2.10.0
4. How I installed and ran Caddy:
FROM caddy:2.10.0-builder AS builder
RUN xcaddy build \\
–with github.com/corazawaf/coraza-caddy/v2@latest \\
–with github.com/hslatman/caddy-crowdsec-bouncer/http@main \\
–with github.com/hslatman/caddy-crowdsec-bouncer/appsec@main \\
–with github.com/hslatman/caddy-crowdsec-bouncer/layer4@main \\
–with github.com/WeidiDeng/caddy-cloudflare-ip \\
–with github.com/mholt/caddy-dynamicdns \\
–with github.com/caddy-dns/cloudflare \\
–with github.com/caddy-dns/duckdns
FROM caddy:2.10.0
COPY --from=builder /usr/bin/caddy /usr/bin/caddy
a. System environment:
b. Command:
sudo docker compose up --build in order to see the output log
.
c. Service/unit/compose file:
`services:
caddy:
build:
context: .
dockerfile: Dockerfile
container_name: caddy
restart: unless-stopped
cap_add:
- NET_ADMIN
environment:
- CLOUDFLARE_API_TOKEN=$CLOUDFLARE_API_TOKEN
- DUCKDNS_API_TOKEN=$DUCKDNS_API_TOKEN
ports:
- 80:80
- 443:443
# - 443:443/udp
- 8123:8123
- 8443:8443
- 4080:4080
volumes:
- $DOCKERDIR/caddy/log:/var/log
- $DOCKERDIR/caddy/ruleset:/ruleset
- $DOCKERDIR/caddy/Caddyfile:/etc/caddy/Caddyfile
- $DOCKERDIR/caddy/data:/data
- $DOCKERDIR/caddy/config:/config
- $DOCKERDIR/certs/:/config/rlyeh
# Aquí irían las webs si siquiera meterlas o las configuraciones específicas para cada URL, como reglas personalizadas CRS
# - $DOCKERDIR/caddy/site:/srv
networks:
crowdsec:
security_opt:
- no-new-privileges=true
crowdsec:
image: docker.io/crowdsecurity/crowdsec:latest
container_name: crowdsec
restart: unless-stopped
environment:
- GID=1000
- COLLECTIONS=crowdsecurity/caddy crowdsecurity/http-cve crowdsecurity/base-http-scenarios crowdsecurity/appsec-generic-
rules crowdsecurity/linux crowdsecurity/sshd crowdsecurity/whitelist-good-actors crowdsecurity/iptables
- BOUNCER_KEY_CADDY=${CROWDSEC_API_KEY}
ports:
- 8080:8080
- 7422:7422
volumes:
- $DOCKERDIR/caddy/crowdsec_config:/etc/crowdsec
- crowdsec_db:/var/lib/crowdsec/data/
- $DOCKERDIR/caddy/log:/var/log/caddy:ro
networks:
crowdsec:
security_opt:
- no-new-privileges=true
volumes:
crowdsec_db:
networks:
crowdsec:
driver: bridge ``
```
PASTE OVER THIS, BETWEEN THE ``` LINES.
Please use the preview pane to ensure it looks nice.
d. My complete Caddy config:
{
#Token de la API Cloudflare que usa el módulo para la gestión ACME de Cloudflare
acme_dns cloudflare {env.CLOUDFLARE_API_TOKEN}
#Configuración para el módulo de aceptar solo el tráfico proveniente del rango de IPs de cloudflare
servers {
trusted_proxies cloudflare {
interval 12h
timeout 15s
}
}
# Definición de duckdns como proveedor DNS par el módulo "caddy-dns/duckdns". Ver documento sobre porque está comentado.
# dns duckdns {env.DUCKDNS_API_TOKEN}
#Configuración para el módulo de gestión de duckdns
dynamic_dns {
provider duckdns {env.DUCKDNS_API_TOKEN}
domains {
duckdns.org xxyy
}
}
#Configuración para el módulo de gestión de duckdns
dynamic_dns {
provider duckdns {env.DUCKDNS_API_TOKEN}
domains {
duckdns.org sar1978
}
}
#Mail para recibir los avisos de la gestión de certificados con ACME
email xxx.com
# Ponemos el log de debug (crowsec usa los log para detectar anomalías)
log {
level DEBUG
}
#Habilitamos coraza
order coraza_waf first
}
#Fin de la zona de configuración global
#Esta es la zona de definición de sites
#Configuración de reserve proxy (esto incluye la configuración para la inspección de coraza)
#Home Assistant
https://bha.xxx.com {
coraza_waf {
load_owasp_crs
directives `
Include @coraza.conf-recommended
Include @crs-setup.conf.example
Include @owasp_crs/*.conf
SecRuleEngine On
`
}
reverse_proxy http://192.168.8.22:8123 {
header_up X-Real-IP {remote_host}
}
log {
output file /var/log/caddy/homeassistant.log
}
}
#VaultWarden
https://bvw.xxx.com {
tls {
dns cloudflare {env.CLOUDFLARE_API_TOKEN}
resolvers 1.1.1.1
propagation_timeout 10m
}
coraza_waf {
load_owasp_crs
directives `
Include @coraza.conf-recommended
Include @crs-setup.conf.example
Include @owasp_crs/*.conf
SecRuleEngine On
`
}
reverse_proxy https://192.168.8.20:8443 {
#Esta directiva la he puesto por recomendación del creador de Vaultwarden.
header_up X-Real-IP {remote_host}
transport http {
tls_trust_pool file /config/rlyeh/rlyeh-ca.pem
# tls_insecure_skip_verify
}
}
log {
output file /var/log/caddy/vaultwarden.log
}
}
