5-10% request fails SSL/TLS handshake when using Caddy server as reverse proxy

Help
1

1. The problem I’m having:

Sometime we facing error of SSL sometime with same domain. check logs for more details

2. Error messages and/or full log output:

  • Host paymentz.myappz.shop:443 was resolved.
  • IPv6: (none)
  • IPv4: 3.148.8.146
  • Trying 3.148.8.146:443…
  • schannel: disabled automatic use of client certificate
  • Connected to paymentz.myappz.shop (3.148.8.146) port 443
  • using HTTP/1.x

HEAD /login HTTP/1.1
Host: paymentz.myappz.shop
User-Agent: curl/8.11.0
Accept: /

  • schannel: remote party requests renegotiation
  • schannel: renegotiating SSL/TLS connection
  • schannel: SSL/TLS connection renegotiated
  • Request completely sent off
    < HTTP/1.1 200 OK
    HTTP/1.1 200 OK
    < Alt-Svc: h3=“:443”; ma=2592000
    Alt-Svc: h3=“:443”; ma=2592000
    < Cache-Control: no-cache, private
    Cache-Control: no-cache, private
    < Content-Type: text/html; charset=UTF-8
    Content-Type: text/html; charset=UTF-8
    < Date: Wed, 22 Oct 2025 01:47:06 GMT
    Date: Wed, 22 Oct 2025 01:47:06 GMT
    < Server: nginx/1.28.0
    Server: nginx/1.28.0
    < Vary: Accept-Encoding
    Vary: Accept-Encoding
    < Via: 1.1 Caddy
    Via: 1.1 Caddy
    < X-Content-Type-Options: nosniff
    X-Content-Type-Options: nosniff
    < X-Xss-Protection: 1; mode=block
    X-Xss-Protection: 1; mode=block
    <
  • Connection #0 to host paymentz.myappz.shop left intact
    ============completed============
  • Host paymentz.myappz.shop:443 was resolved.
  • IPv6: (none)
  • IPv4: 3.148.8.146
  • Trying 3.148.8.146:443…
  • schannel: disabled automatic use of client certificate
  • Recv failure: Connection was reset
  • schannel: failed to receive handshake, SSL/TLS connection failed
  • closing connection #0
    curl: (35) Recv failure: Connection was reset
    ============completed============

3. Caddy version:

v2.10.2

4. How I installed and ran Caddy:

Step 1: Launch and Configure EC2 Instance

  1. Create EC2 Instance:
    • In the AWS Management Console, navigate to EC2 > Instances > Launch an instance.
    • Select Ubuntu Server 22.04 LTS or 24.04 LTS (64-bit x86).
    • Choose instance type (e.g., t3.micro for testing, adjust for production).
    • Configure storage: Minimum 25 GB General Purpose SSD (gp3).
    • Assign a security group with inbound rules:
      • SSH (port 22): Source My IP or specific CIDR.
      • HTTP (port 80): Source 0.0.0.0/0.
      • HTTPS (port 443): Source 0.0.0.0/0.
    • Download the key pair for SSH access.
  2. SSH into the Instance:

    • Connect using the IP and key pair:

      ssh -i <key-pair.pem> ubuntu@<ip>

Step 2: Install and Build Caddy with DynamoDB Support

  1. Update Packages and Install Dependencies:

    • Switch to root:

      sudo su

    • Update package lists:

      apt-get update
apt-get install -y debian-keyring debian-archive-keyring apt-transport-https

  2. Add Caddy xcaddy Repository:

    • Import the GPG key:

      curl -1sLf 'https://dl.cloudsmith.io/public/caddy/xcaddy/gpg.key' | gpg --dearmor -o /usr/share/keyrings/caddy-xcaddy-archive-keyring.gpg

    • Add the repository:

      curl -1sLf 'https://dl.cloudsmith.io/public/caddy/xcaddy/debian.deb.txt' | tee /etc/apt/sources.list.d/caddy-xcaddy.list

    • Set permissions:

      chmod o+r /usr/share/keyrings/caddy-xcaddy-archive-keyring.gpg
chmod o+r /etc/apt/sources.list.d/caddy-xcaddy.list

    • Update package lists:

      apt-get update

  3. Install Go:

    • Download and install Go 1.25.1 (or later):

      wget https://go.dev/dl/go1.25.1.linux-amd64.tar.gz
tar -xvf go1.25.1.linux-amd64.tar.gz
mv go /usr/local

    • Set environment variables:

      echo "export GOROOT=/usr/local/go" >> /etc/profile
echo "export PATH=\$PATH:/usr/local/go/bin" >> /etc/profile
source /etc/profile

    • Verify Go installation:

      go version

  4. Install xcaddy and Build Caddy:

    • Install xcaddy:

      apt-get install -y xcaddy

    • Build Caddy with DynamoDB storage module:

      xcaddy build --with github.com/silinternational/certmagic-storage-dynamodb/v3

    • Move the Caddy binary:

      mv caddy /usr/bin/

    • Verify installation and module:

      caddy version
caddy build-info | grep dynamodb
      • Expected output confirms certmagic-storage-dynamodb module inclusion.

Step 3: Configure Caddyfile

  1. Create Caddyfile:

    • Create and edit the Caddy configuration file:

      mkdir -p /etc/caddy
nano /etc/caddy/Caddyfile

    • Add the following configuration:

      {
    storage dynamodb Certificate {
        aws_endpoint https://dynamodb.us-east-2.amazonaws.com
        aws_region us-east-1
    }
    on_demand_tls {
        ask https://<apprunner-service-id>.us-east-1.awsapprunner.com/validate-domain
    }
    acme_ca https://acme.zerossl.com/v2/DV90
    acme_eab {
        key_id <key_id>
        mac_key <hmac>
    }
    email <email>
}

https:// {
    tls {
        on_demand
    }

    @dynamic host {http.request.host}
    handle @dynamic {
        reverse_proxy <server address>
    }
}

    • Replace <apprunner-service-id> with the actual App Runner service ID from the prior setup

    • Ensure Certificate matches the DynamoDB table name created earlier.

    • Adjust aws_region if using a different region.

  2. Validate Caddyfile:

    • Check syntax:

      caddy validate --config /etc/caddy/Caddyfile

Step 4: Configure AWS Credentials

  1. Create AWS Configuration Directory:

    • As the ubuntu user:

      mkdir -p ~/.aws
cd ~/.aws

  2. Configure AWS CLI:

    • Edit config:

      nano config

      • Add:

        [default]
region = us-east-2
output = json

    • Edit credentials:

      nano credentials

      • Add:

        [default]
aws_access_key_id = <your_access_key_here>
aws_secret_access_key = <your_secret_key_here>

      • Replace <your_access_key_here> and <your_secret_key_here> with valid AWS credentials.

    • Best Practice: Preferably, attach an IAM role to the EC2 instance with DynamoDB permissions instead of hardcoding credentials:

      {
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "dynamodb:PutItem",
        "dynamodb:GetItem",
        "dynamodb:Query",
        "dynamodb:Scan"
      ],
      "Resource": "arn:aws:dynamodb:us-east-1:<account-id>:table/Certificate"
    }
  ]
}
      • Attach this role to the EC2 instance via the AWS Management Console (EC2 > Instances > Actions > Security > Modify IAM role).

Step 5: Set Up Caddy as a System Service

  1. Create Systemd Service File:

    • Create and edit the service file:

      nano /etc/systemd/system/caddy.service

    • Add:

      [Unit]
Description=Caddy Web Server
After=network.target

[Service]
ExecStart=/usr/bin/caddy run --environ --config /etc/caddy/Caddyfile
ExecReload=/usr/bin/caddy reload --config /etc/caddy/Caddyfile
Restart=always
User=root

[Install]
WantedBy=multi-user.target

  2. Enable and Start Caddy Service:

    • Reload systemd:

      systemctl daemon-reload

    • Enable and start Caddy:

      systemctl enable caddy
systemctl start caddy

    • Check service status:

      systemctl status caddy
      • Confirm the service is active (running).

a. System environment:

Distributor ID: Ubuntu
Description: Ubuntu 24.04.3 LTS
Release: 24.04
Codename: noble

b. Command:

/usr/bin/caddy run --environ --config /etc/caddy/Caddyfile

d. My complete Caddy config:

{
    storage dynamodb certificates_table {
        aws_endpoint https://dynamodb.us-east-2.amazonaws.com
    }
    on_demand_tls {
        ask <validate_domain_endpoint>
    }
    acme_ca https://acme.zerossl.com/v2/DV90
    acme_eab {
        key_id <kid>
        mac_key <mkey>
    }
    log {
        output file /var/log/caddy/caddy.log
    }
   ocsp_stapling off
   auto_https off
   email <email>
}
http:// {
    redir https://{http.request.host}{http.request.uri} 301
}
# Catch-all for dynamic domains (no explicit host = matches all via SNI)
https:// {
    tls {
       on_demand
       #protocols tls1.2 tls1.3
    }
    @dynamic host {http.request.host}
    handle @dynamic {
        # reverse proxy to accounts server
        reverse_proxy <Application_server_ip> {
            header_up X-Real-IP {remote_host}
            header_up X-Forwarded-For {remote_host}
            header_up X-Forwarded-Proto {scheme}
            header_up X-Forwarded-AWS-Elb {http.request.header.X-Forwarded-AWS-Elb}
        }
    }
}
2

Hmm, gnutls-cli says |<1>| Received record packet of unknown type 72.

Can you post your caddy logs?

1 Like
3

AWS NLB → Caddy Reverse Proxy (Config Shared) → Nginx Application Server. This is Current Arch which is handling traffic hope this helps. I tried most of things. i unable to fix this thing. Please help me out.

{“level”:“info”,“ts”:1761127670.3471193,“logger”:“http.log.access.log0”,“msg”:“handled request”,“request”:{“remote_ip”:“117.207.77.68”,“remote_port”:“60906”,“client_ip”:“117.207.77.68”,“proto”:“HTTP/1.1”,“method”:“HEAD”,“host”:“paymentz.myappz.shop”,“uri”:“/login”,“headers”:{“User-Agent”:[“curl/8.11.0”],“Accept”:[“/”]},“tls”:{“resumed”:false,“version”:772,“cipher_suite”:4865,“proto”:“”,“server_name”:“paymentz.myappz.shop”}},“bytes_read”:0,“user_id”:“”,“duration”:0.084916904,“size”:0,“status”:200,“resp_headers”:{“Alt-Svc”:[“h3=":443"; ma=2592000”],“Server”:[“nginx/1.28.0”],“Cache-Control”:[“no-cache, private”],“Via”:[“1.1 Caddy”],“Vary”:[“Accept-Encoding”],“Date”:[“Wed, 22 Oct 2025 10:07:50 GMT”],“X-Xss-Protection”:[“1; mode=block”],“Content-Type”:[“text/html; charset=UTF-8”],“Set-Cookie”:[“REDACTED”],“X-Content-Type-Options”:[“nosniff”]}}
{“level”:“info”,“ts”:1761127673.5160062,“logger”:“http.log.access.log0”,“msg”:“handled request”,“request”:{“remote_ip”:“117.207.77.68”,“remote_port”:“60909”,“client_ip”:“117.207.77.68”,“proto”:“HTTP/1.1”,“method”:“HEAD”,“host”:“paymentz.myappz.shop”,“uri”:“/login”,“headers”:{“User-Agent”:[“curl/8.11.0”],“Accept”:[“/”]},“tls”:{“resumed”:false,“version”:772,“cipher_suite”:4865,“proto”:“”,“server_name”:“paymentz.myappz.shop”}},“bytes_read”:0,“user_id”:“”,“duration”:0.073855026,“size”:0,“status”:200,“resp_headers”:{“Alt-Svc”:[“h3=":443"; ma=2592000”],“Server”:[“nginx/1.28.0”],“X-Xss-Protection”:[“1; mode=block”],“Vary”:[“Accept-Encoding”],“Set-Cookie”:[“REDACTED”],“Via”:[“1.1 Caddy”],“Content-Type”:[“text/html; charset=UTF-8”],“Cache-Control”:[“no-cache, private”],“Date”:[“Wed, 22 Oct 2025 10:07:53 GMT”],“X-Content-Type-Options”:[“nosniff”]}}
{“level”:“info”,“ts”:1761127676.722728,“logger”:“http.log.access.log0”,“msg”:“handled request”,“request”:{“remote_ip”:“117.207.77.68”,“remote_port”:“60912”,“client_ip”:“117.207.77.68”,“proto”:“HTTP/1.1”,“method”:“HEAD”,“host”:“paymentz.myappz.shop”,“uri”:“/login”,“headers”:{“User-Agent”:[“curl/8.11.0”],“Accept”:[“/”]},“tls”:{“resumed”:false,“version”:772,“cipher_suite”:4865,“proto”:“”,“server_name”:“paymentz.myappz.shop”}},“bytes_read”:0,“user_id”:“”,“duration”:0.080072413,“size”:0,“status”:200,“resp_headers”:{“X-Content-Type-Options”:[“nosniff”],“Alt-Svc”:[“h3=":443"; ma=2592000”],“Content-Type”:[“text/html; charset=UTF-8”],“Date”:[“Wed, 22 Oct 2025 10:07:56 GMT”],“X-Xss-Protection”:[“1; mode=block”],“Via”:[“1.1 Caddy”],“Server”:[“nginx/1.28.0”],“Vary”:[“Accept-Encoding”],“Cache-Control”:[“no-cache, private”],“Set-Cookie”:[“REDACTED”]}}
{“level”:“info”,“ts”:1761127685.5000517,“logger”:“http.log.access.log0”,“msg”:“handled request”,“request”:{“remote_ip”:“117.207.77.68”,“remote_port”:“60921”,“client_ip”:“117.207.77.68”,“proto”:“HTTP/1.1”,“method”:“HEAD”,“host”:“paymentz.myappz.shop”,“uri”:“/login”,“headers”:{“User-Agent”:[“curl/8.11.0”],“Accept”:[“/”]},“tls”:{“resumed”:false,“version”:772,“cipher_suite”:4865,“proto”:“”,“server_name”:“paymentz.myappz.shop”}},“bytes_read”:0,“user_id”:“”,“duration”:0.071898175,“size”:0,“status”:200,“resp_headers”:{“X-Xss-Protection”:[“1; mode=block”],“X-Content-Type-Options”:[“nosniff”],“Set-Cookie”:[“REDACTED”],“Via”:[“1.1 Caddy”],“Alt-Svc”:[“h3=":443"; ma=2592000”],“Vary”:[“Accept-Encoding”],“Date”:[“Wed, 22 Oct 2025 10:08:05 GMT”],“Server”:[“nginx/1.28.0”],“Content-Type”:[“text/html; charset=UTF-8”],“Cache-Control”:[“no-cache, private”]}}

4

From a search result (1 of only 2!) for that error message:

It was my wrong firewall rules for 443->4443 port forwarding
for be able to run server on non-privileged port.

Check your network configuration.

5

Hi Matt, Thank you.

i checked firewall and other all looks perfect. I not even to know why some of the request failing.

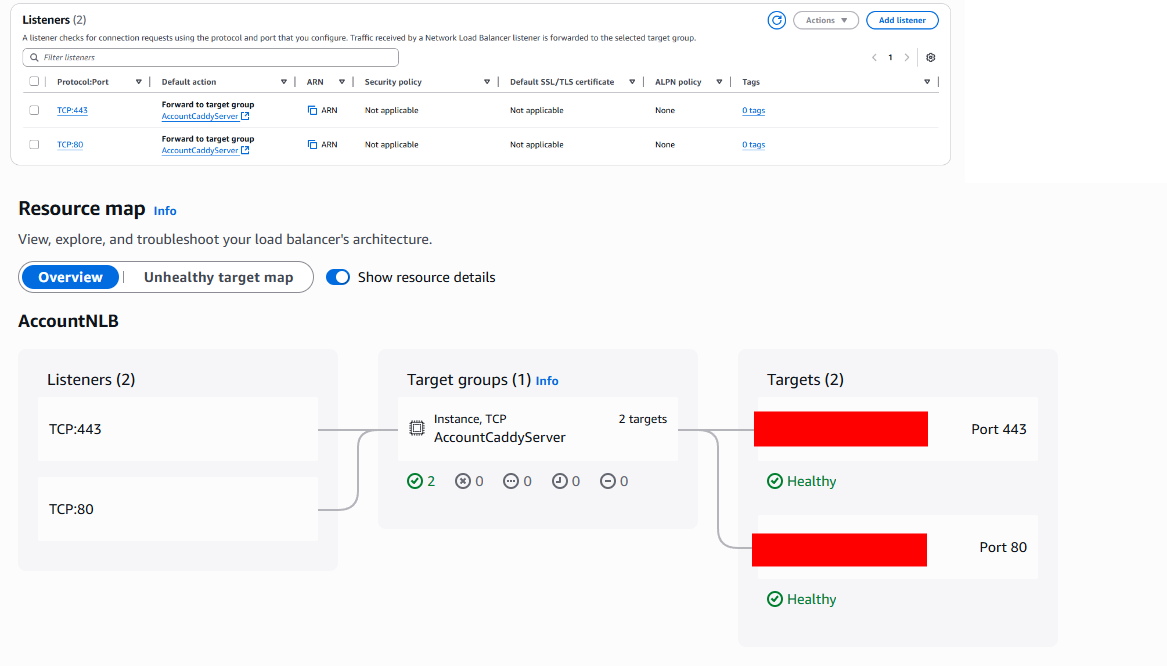

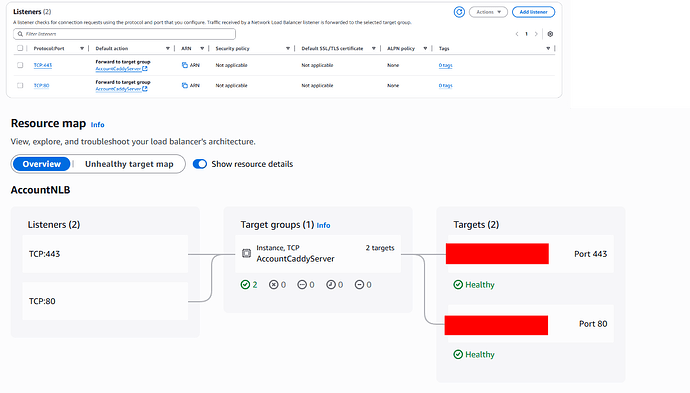

AWS NLB Listener & NLB Resource Map

noname
noname1167×666 68.4 KB

6

I found one issue with NLB, we have to turn off proxy_protocol_v2 and termination to off and increase the timing at NLB attribution side. I update configuration for caddy server as well. now its not failing any request

2 Likes
7

You probably need to consider the proxy_protocol listener wrapper. Caddy can accept PROXY protocol connections when configured.

4 Likes
